wood chipper bx series
Model
BX42S
BX62R
BX92R
Max Chipping Diameter
100mm/ 4”
150mm/ 6’’
2500mm/10”
Chipping House Opening
4”x10”
6.5’’x12’’
10”x15”
No. of Blades
5
5
5
Rotor Size
25”
30’’
36”
Feeding System Feed
Self feeding
Two hydraulic Feeding
Two hydraulic Feeding
Hopper Opening
20”x20”
25’’x25’’
25''x25''
Mounting System
3 Point Hitch
3 Point Hitch
3 Point Hitch
Hopper Discharge Rotation
360
360
360
Hopper Discharge Height
60”
74’’
90’’
Net Weight
205 Kg
448kg
630kg
Tractor HP
15~30Hp
30-100hp
40-140hp

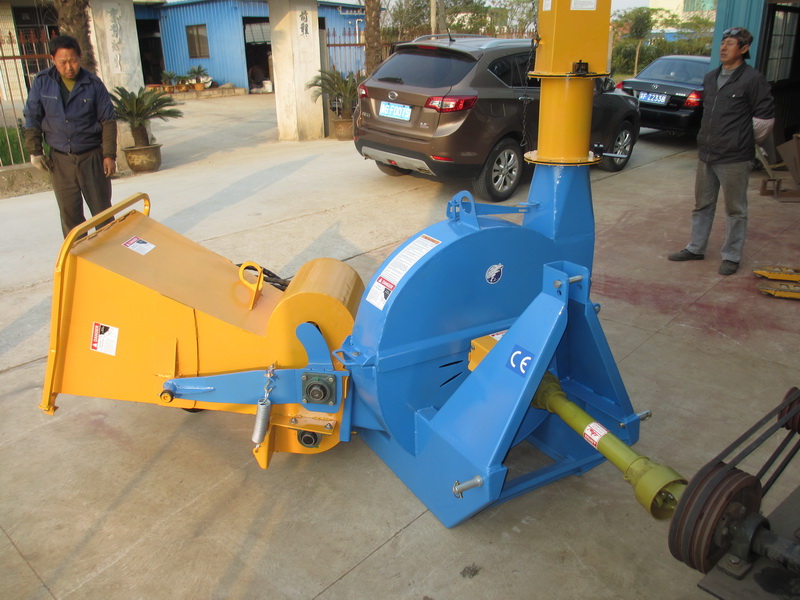

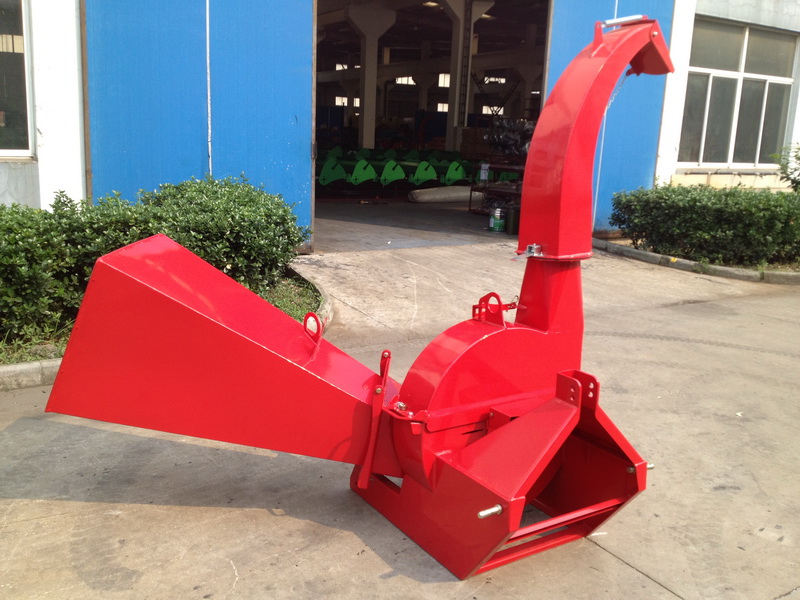

  BX Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 6” diameter tree trunks. The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper,Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distanceMaximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
